RUPES Dust Extraction Systems

Quality Quality first – before being released into the market every RUPES machine undergoes an extensive series of technical assessments. The performance of motors in heavy duty applications, balancing, energy consumption, and resistance to impacts are only a few examples of the standard requirements through which all new RUPES products must endure.

A RUPES product must demonstrate distinctive qualities and benefit the market by offering tangible advantages.

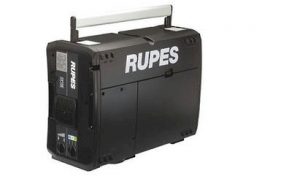

RUPES Portable Dust Extraction Unit

RUSV10E

RUPES Compact Mobile Dust Extraction UnitPowerful and compact portable dust extraction unit for connection to a wide range of RUPES electric equipment.  With its compact size, carry handle and weighing just 6.5Kg it can be easily transported.

  • 1150W
  • 3.5Kg dust bag capacity.
  • Provides dust extraction for an electric power tool.

The RUSV10E RUPES Portable Dust Extraction Unit compliments the RUPES Carrier System, being designed to sit neatly on top, ensuring both sanding & dust extraction equipment can be easily transported to the work area in one go.

Complete with a power socket for tools up to 1000W, a dust bag capacity of 3.5Kg, a 5m hose and a range of cleaning attachments so it can also be used as a vacuum. An optional shoulder strap is sold separately.

Technical Specifications

Flow Capacity m³/h 100
Vacuum Nozzle nr. 1
Noise dB(A) 75
Capacity Bag Kg 3.5
Vacuum Level mm/H₂O 1600
Weight Kg 6.5
Power Max W 1×1000
Power W 1150

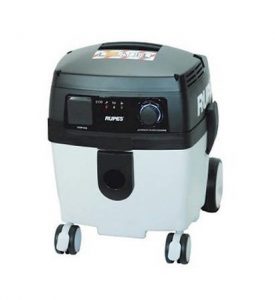

RUPES Compact Mobile Dust Extraction Unit

RUS130EL

RUPES Compact Mobile Dust Extraction UnitRUPES is a pioneer in the field of industrial power tools, from the launch of the world’s first portable electric sander to the wide range of engineered power tools systems it manufactures today RUPES continues to innovate.

  • 1200W.
  • Versatile and compact dust extraction unit with automatic filter cleaning.
  • 5Kg Dust bag capacity.
  • 30L Container volume.

With a 1200 watt motor the RUS130EL is an extremely versatile and compact dust extraction unit, providing dust extraction for an electric tool. The operator can choose between  manual or automatic mode. The automatic mode can be selected by means of the special patented electronic board for electric tools with a maximum power of 2400 Watts.

To ensure maximum extraction efficiency under all working conditions, the S1, version E extractors have an automatic filter cleaning system (RUPES patent). By means of a system of valves, the air flow passing through the filters is inverted in alternation every 30 seconds, thus ensuring efficient cleaning action. With this innovative system, the operator is able to continue working without any interruption of or reduction in the extraction process.

Supplied with a multipurpose swivel extraction attachment that makes it possible to use extraction hoses with diameters of 25, 29, 38 and 50 mm, making the extractor adaptable to any application. This model comes complete with a 4m hose and filter bag.

Extracted Dust Classification Rated ‘L ‘ – with a maximum tolerated exposure value > 1.0 mg/m3 (according to the EN60335-2-69/A2 standard). Suitable for fine dust, dust from mineral substances containing aluminium oxide and paint dust applications.

Features a convenient, multipurpose shelf for storing tools and attachments.

Technical Specifications

Indicated for dust classes L
Power W 1×1200
Tool Power, max W 1×2400
Vacuum Level mm/H©üO 2000
Weight Kg 10.5
Noise dB(A) 70
Bag Capacity Kg 5
Container Volume L 30
Flow capacity m3/h 200
Connectable tools 1
Electrical outlets for tools 1
Automatic filter cleaning Yes

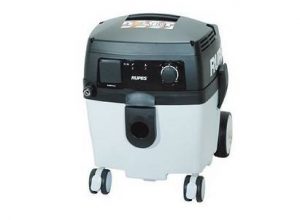

RUPES Electro-Pneumatic Compact Mobile Dust Extraction Unit

RUS130PL

RUPES_Electro-Pneumatic_Compact_Dust_extraction_Unit-RUS130PL-www.vacuum.co.nzRUPES is a pioneer in the field of industrial power tools, from the launch of the world’s first portable electric sander to the wide range of engineered power tools systems it manufactures today RUPES continues to innovate.

  • 1200W.
  • Versatile and compact dust extraction unit.
  • Can be used simultaneously with electric or pneumatic tools.
  • 5Kg Dust bag capacity.
  • 30L Container volume.

With a 1200 watt motor the RUS130PL is an extremely versatile and compact dust extraction unit, providing dust extraction for an electric tool or pneumatic tool. The operator can choose between  manual or automatic mode. The automatic mode can be selected by means of the special patented electronic board for electric tools with a maximum power of 2400 Watts. Features a pivotable front connector for hoses, Ø 25 – 29 – 38 – 50 mm . This model comes complete with a 4m hose and filter bag.

Technical Specifications

Pneumatic
Working Pressure Bar 6
Filter Class EN 60335-2-69 M
Power W 1×1200
Tool Power, max W 1×2400
Air Flow Rate m3/h 200
Vacuum Level mm/H©üO 2000
Weight Kg 10.5
Noise dB(A) 70
Bag Capacity Kg 5
Container Volume L 30
Max Air Flow Rate L/min 1450

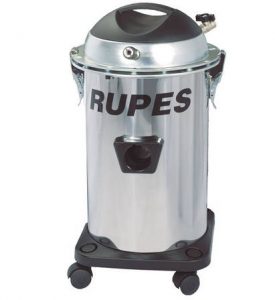

RUPES Pneumatic Portable Vacuum Cleaner

RUSP235 – Air driven portable vacuum unit for sanding dust and valeting.

RUPES Pneumatic Portable Vacuum Cleaner Air driven portable vacuum unit for sanding dust and valeting.RUPES is a pioneer in the field of industrial power tools, from the launch of the world’s first portable electric sander to the wide range of engineered power tools systems it manufactures today RUPES continues to innovate.

Air driven portable vacuum unit for sanding dust and valeting. Thanks to the special Venturi system it operates in any environment where there is no electric power.

Technical Specifications

Pneumatic
Working Pressure Bar 6
Air quick coupling nr 1
Vacuum nozzle nr 1
Weight Kg 8
Bag Capacity Kg 5
Vacuum mm/H₂O 1900
Flow capacity m³/h 100
Max. air flow rate l/min 1000

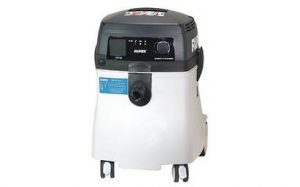

RUPES Mobile Dust Extraction Unit with Automatic Filter Cleaning

RUS145EL

RUPES Mobile Dust Extraction Unit with Automatic Filter CleaningRUS145EL is the latest portable energy/dust extraction unit from RUPES. This extremely quiet unit is suitable for extracting dust from sanding and various types of industrial work. Fitted with a  connection for an electrical tool.

  • 1200W.
  • Extremely quiet unit.
  • 5Kg Dust bag capacity.
  • 45L Container volume.

Features include: self-cleaning filter system, manual or automatic start-up options, speed control, liquid-level indicator, working-time memory and service-interval indicator for replacement of motor brushes, an electrostatic charge dispersion device, and pivotable front connector for hoses Ø 25 – 29 – 38 – 50mm.

This unit includes a large dust and liquid container, generous rear space for cables and accessories, plus top-mounted ledge for accessories and tools.

Technical Specifications

Filter Class EN 60335-2-69 M
Power W 1×1200
Tool Power, max W 1×2400
Air Flow Rate m3/h 200
Vacuum Level mm/H©üO 2000
Weight Kg 13
Noise dB(A) 67
Bag Capacity Kg 5
Container Volume L 45

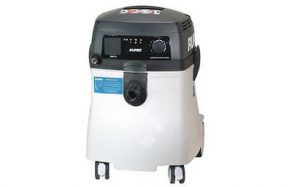

RUPES Electro-Pneumatic Mobile Dust Extraction Unit with Automatic Filter Cleaning

RUS145EPL

RUPES Electro-Pneumatic Mobile Dust Extraction Unit with Automatic Filter CleaningRUS145EPL is the latest portable energy/dust extraction unit from RUPES. This extremely quiet unit is suitable for extracting dust from sanding and various types of industrial work. Fitted with a  connection for an electric or pneumatic tool.

  • 1200W.
  • Extremely quiet unit for dust extraction.
  • Can be used simultaneously with electric or pneumatic tools.
  • 5Kg Dust bag capacity.
  • 45L Container volume.

Features include: self-cleaning filter system, manual or automatic start-up options, speed control, liquid-level indicator, working-time memory and service-interval indicator for replacement of motor brushes, an electrostatic charge dispersion device, and pivotable front connector for hoses Ø 25 – 29 – 38 – 50mm.

This unit includes a large dust and liquid container, generous rear space for cables and accessories, plus top-mounted ledge for accessories and tools.

Technical Specifications

Pneumatic
Working Pressure Bar 6
Filter Class EN 60335-2-69 M
Power W 1×1200
Tool Power, max W 1×2400
Air Flow Rate m3/h 200
Vacuum Level mm/H©üO 2000
Weight Kg 13.5
Noise dB(A) 67
Bag Capacity Kg 5
Container Volume L 45
Max Air Flow Rate L/min 1450

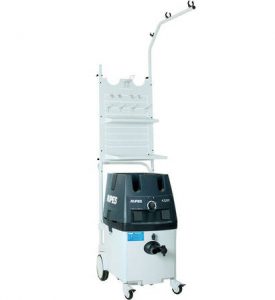

RUPES Mobile Dust Extraction Unit with Work Station

RUKS260ES

RUPES Mobile Dust Extraction Unit with Work StationWith two x 1000 Watt motors, this powerful, robust and reliable RUPES Mobile Dust Extraction Unit is fitted for simultaneous connection with two electric tools.

  • Integrated workstation ideal for transporting sanding equipment around the workshop.
  • 2 x 1000W Motors
  • 7Kg dust bag capacity.
  • Provides dust extraction for up to two electric tools simultaneously.

The top shelf provides a useful storage solution for keeping tools and machines conveniently on hand. There are also two side holders to store the extraction hoses so the operator’s work area can be kept clear at all times.

Features include a control panel with two power sockets, pivoting wheels that brake, a hinged front hatch for easy access to the dust bag. The exhaust at the rear of the unit can be ducted outside with the use of an Evaflex hose.

The integrated workstation is made from durable steel, and features a selection of hooks for hanging a variety of discs / sanding sheets. There is also a built-in shelf at the base which can be used for storing other equipment or products, such as sanding blocks. The complete system is ideal for transporting sanding equipment around the workshop.

Technical Specifications

Filter Class EN 60335-2-69 M
Power W 2×1000
Tool Power, max W 2×800, 1×1600
Air Flow Rate m3/h 260
Vacuum Level mm/H©üO 2000
Weight Kg 26
Noise dB(A) 72
Bag Capacity Kg 7
Container Volume L 65

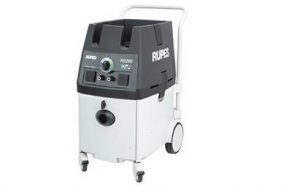

RUPES Mobile Dust Extraction Unit

RUKS260E

RUPES Mobile Dust Extraction UnitWith two x 1000 Watt motors, this powerful, robust and reliable RUPES Mobile Dust Extraction Unit is fitted for simultaneous connection with two electric tools.

  • 2 x 1000W Motors
  • 7Kg dust bag capacity
  • Provides dust extraction for up to two electric tools simultaneously.

The top shelf provides a useful storage solution for keeping tools and machines conveniently on hand. There are also two side holders to store the extraction hoses so the operator’s work area can be kept clear at all times.

Features include a control panel with two power sockets, pivoting wheels that brake, a hinged front hatch for easy access to the dust bag. The exhaust at the rear of the unit can be ducted outside with the use of an Evaflex hose.

Wyatt Machine Tools have designed an abrasive stand to fit onto the back of this unit (sold separately).  Together they provide an integrated sanding workstation, click here for more info.

Technical Specifications

Filter Class EN 60335-2-69 M
Power W 2×1000
Tool Power, max W 2×800, 1×1600
Air Flow Rate m3/h 260
Vacuum Level mm/H₂O 2000
Weight Kg 26
Noise dB(A) 72
Bag Capacity Kg 7
Container Volume L 65

RUPES Electro-Pneumatic Mobile Dust Extraction Unit

RUKS260EP

RUPES Electro-Pneumatic Mobile Dust Extraction UnitWith two x 1000 Watt motors, this powerful, robust and reliable RUPES Mobile Dust Extraction Unit is fitted for simultaneous connection with two tools – electric and/or pneumatic.

  • 2 x 1000W Motors
  • 7Kg dust bag capacity
  • Provides dust extraction for up to two tools electric or pneumatic simultaneously.

The top shelf provides a useful storage solution for keeping tools and machines conveniently on hand. There are also two side holders to store the extraction hoses so the operator’s work area can be kept clear at all times.

Features include a control panel with two power sockets and two quick air couplings, pivoting wheels that brake, a hinged front hatch for easy access to the dust bag. The exhaust at the rear of the unit can be ducted outside with the use of an Evaflex hose.

Wyatt Machine Tools have designed an abrasive stand to fit onto the back of this unit (sold separately).  Together they provide an integrated sanding workstation, click here for more info.

Technical Specifications

Air Quick Coupling nr. 2
Pneumatic
Filter Class EN 60335-2-69 M
Power W 2×1000
Tool Power, max W 2×800, 1×1600
Air Flow Rate m3/h 260
Vacuum Level mm/H₂O 2000
Weight Kg 26
Noise dB(A) 72
Bag Capacity Kg 7
Container Volume L 65

RUPES Electro-Pneumatic Mobile Dust Extraction Unit with Work Station

RUKS260EPS – Looking for a mobile dust extraction solution for multiple operators? The RUKS260EPS provides dust extraction for up to two electric or pneumatic powertools simultaneously.

RUPES Electro-Pneumatic Mobile Dust Extraction Unit with Work StationRUPES is a pioneer in the field of industrial power tools, from the launch of the world’s first portable electric sander to the wide range of engineered power tools systems it manufactures today RUPES continues to innovate.

The new and improved  KS260EPS models comes complete with an integrated workstation made from durable steel, that consists of two shelves, a selection of abrasive hooks and a boom arm to remove dust hoses from the ground. This stable and highly manoeuvrable machine is equipped with simultaneous connection of two tools (either electric or pneumatic); dual speed and start up systems, highly efficient filter system, easy access to dust collection bag and detachable side panels for storage. It is a truly universal mobile extraction unit, powerful, robust and reliable, ideal for transporting sanding equipment around the workshop.

Technical Specifications

Air Quick Coupling nr. 2
Pneumatic
Filter Class EN 60335-2-69 M
Power W 2×1000
Tool Power, max W 2×800, 1×1600
Air Flow Rate m3/h 260
Vacuum Level mm/H₂O 2000
Weight Kg 26
Noise dB(A) 72
Bag Capacity Kg 7
Container Volume L 65

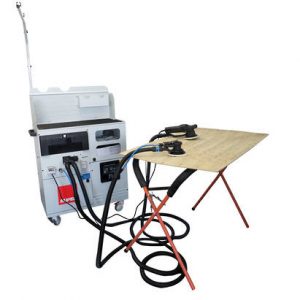

RUPES KR2A Mobile Dust Extraction Turbine with Automatic Filter Cleaning & Twin Sander Combo

RUKR2ACombo – This powerful twin operator offer includes your choice of TWO x RUPES Electric or Pneumatic 150mm Random Sanders, along with the latest RUPES Mobile Dust Extraction Turbine KR2A.

RUPES KR2A Mobile Dust Extraction Turbine with Automatic Filter Cleaning & Twin Sander ComboExtremely flexible vacuum unit: it’s compact, simple to install and it can be easily moved around the working area!

This mobile unit suitable for multiple operators offers everything that a bodyshop user needs from a workstation. Compared to some of the smaller dust extraction units available, testing has shown that the vacuum lasts 10 times longer on the KR2A without service or repair work.
Designed to support 2 users at the same time with:

  • 2 Pneumatic connections for tools with auto start
  • 1 electric connection for service tool (polisher)
  • 1 electric connection with auto start for electric tool

The integrated cabinet can be used for placing pads, tools and useful accessories. The perforated board equipped with supports provides storage of consumables. A wide worktable with ribbed rubber surface makes all daily work easy.

Technical Specifications

Weight Kg 115
Pump side channel technology
Power HP 1500/2
Vacuum level max mm/H₂O 2400
Noise dB(A) 65
Tank capacity L 23
Flow capacity m³/h 250
Filter surface m² 1
Tools Nr 2
Working pressure bar 6
Automatic filter cleaning
ID vacuum nozzle mm 50
Size (hxwxd) cm 136x98x62

RUPES KR2A Mobile Dust Extraction Turbine with Automatic Filter Cleaning

RUKR2A – Extremely flexible vacuum unit: it’s compact, simple to install and it can be easily moved around the working area!

This mobile unit suitable for multiple operators offers everything that a bodyshop user needs from a workstation. Compared to some of the smaller dust extraction units available, testing has shown that the vacuum lasts 10 times longer on the KR2A without service or repair work.

Designed to support 2 users at the same time with:

  • 2 Pneumatic connections for tools with auto start
  • 1 electric connection for service tool (polisher)
  • 1 electric connection with auto start for electric toolRUPES KR2A Mobile Dust Extraction Turbine with Automatic Filter Cleaning

The integrated cabinet can be used for placing pads, tools and useful accessories. The perforated board equipped with supports provides storage of consumables. A wide worktable with ribbed rubber surface makes all daily work easy.

Technical Specifications

Weight Kg 115
Pump side channel technology
Power HP 1500/2
Vacuum level max mm/H₂O 2400
Noise dB(A) 65
Tank capacity L 23
Flow capacity m³/h 250
Filter surface m² 1
Tools Nr 2
Working pressure bar 6
Automatic filter cleaning
ID vacuum nozzle mm 50
Size (hxwxd) cm 136x98x62
