VILLO

Villo Range

Vacuum Brands Ltd are the master agents for the Villo brand of industrial vacuums in New Zealand.

For twenty years we have aligned ourselves with almost all of the long established European Vacuum companies and their ranges.  However increasingly The  “Europeans” are distancing themselves from our shores and it is seldom that popular models are held in regular stock . (Nor Australia)

Indenting from Europe takes up to 4 months  –  and if we have to we will continue to live with that.

However that doesn’t have to be.  The Villo vacuum company in China is huge. Please scroll through their two catalogues listed here.   All their models are in stock, stand in line like buried warriors and can be moved to a port in 24 hours. Goods are in New Zealand within three weeks.

Villo vacuums check these boxes:

  • Full warranty  – Equal and better than European Brands

  • Full service and parts availability.

  • All products certified to New Zealand / China Free Trade and Global Certifications

  • Pricing – Well check it out.  The proof is in the quotation.



For the last decades we have hung back, listened to the stories.  But today China is a modern, a behemoth, a manufacturing giant.  Things have clearly changed.  Come and see for yourself.   And so has value for money.

Vacuum Brands Limited (78 brands, 950 vacuums – 20 years experience) will with excitement put the Villo brand on the New Zealand stage.  Again China and New Zealand have a Free Trade agreement. A strength.

Roger Prentice
Director

Download VILLO –  VACUUM CLEANER CATALOGUE

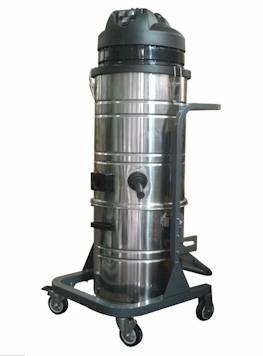

V3JY – Single phase industrial vacuum cleaner

Vertical and compact structure design, PU industrial castor which has advantage of shock absorption, wear-proof and oil resistant, very convenient and flexible.

Stainless steel materials for the collection bin, the unit is attractive and durable, with materials corrosion resistance.

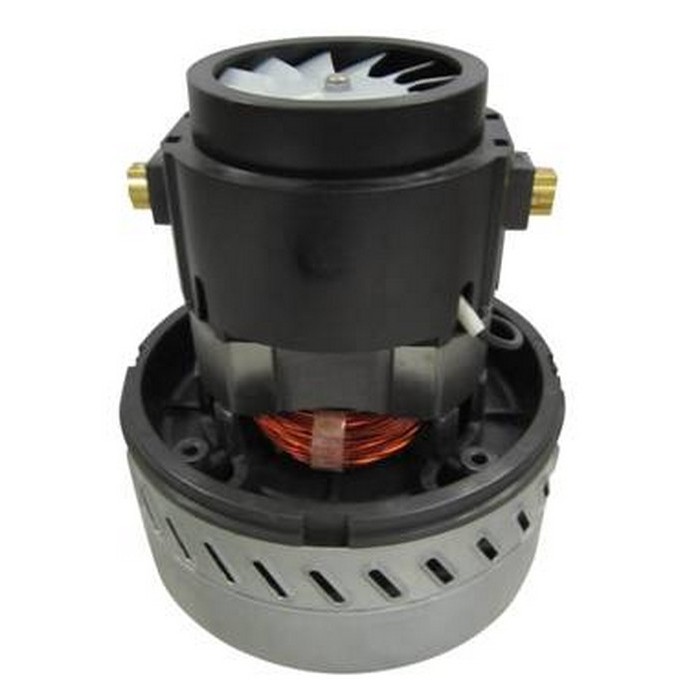

Brush carbon motor and strong suction power

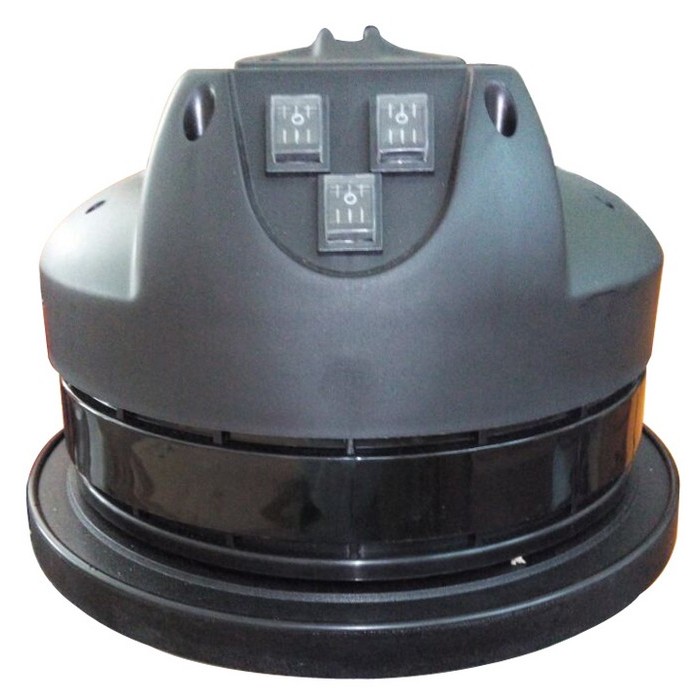

Three carbon brush motors inside, which can work independently, the operator can control the power and air flow according to the conditions.

HEPA filter

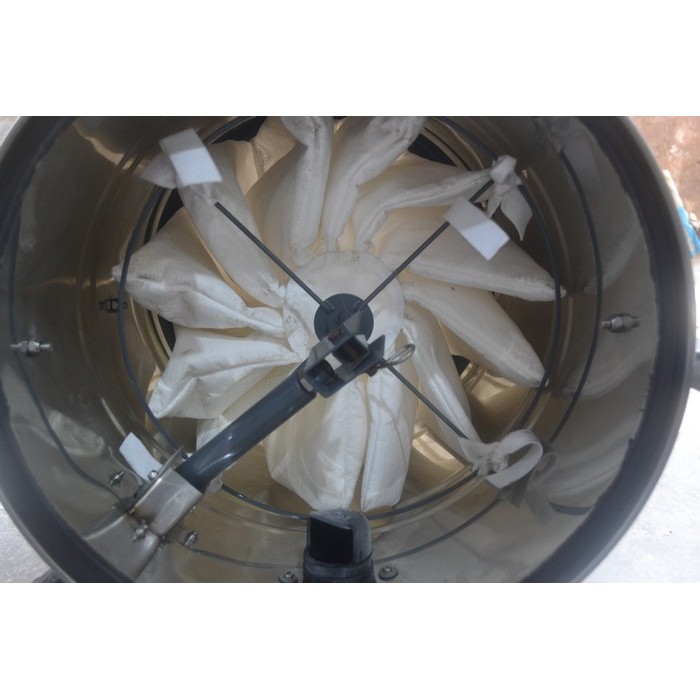

365*250 mm star filter bag installed and the filter rating is 99% at the 3 μm dust, and after PTFE treatment, it can reach 99% at the 1 μm dust measure.

Efficient dust vibration rocker

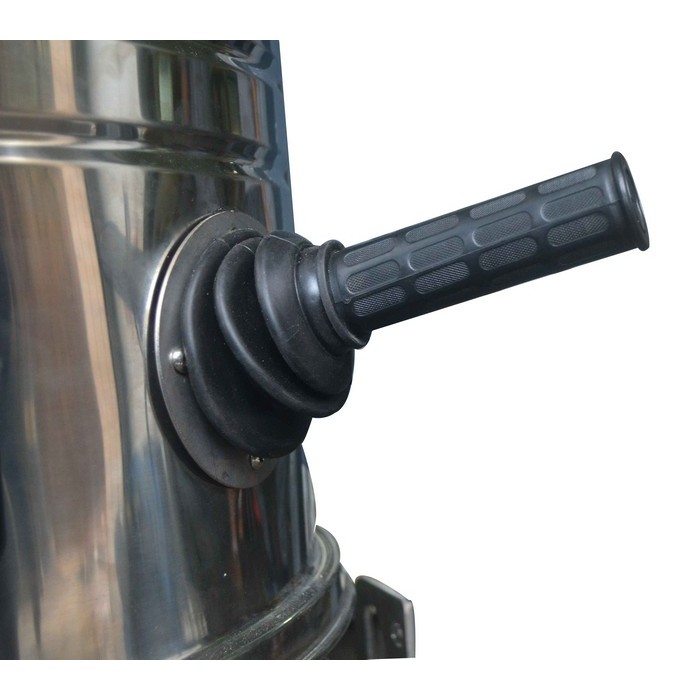

External installed manual dust vibration rocker,solved the inappropriate height problems which exist in the previous machine,and the dust cleaning effect is good.

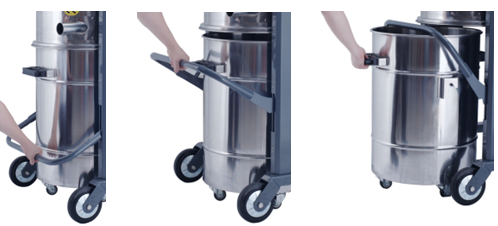

Rapid separation device and convenient dust discharge

Curved pulley loading and unloading collecting bin structure design, easy to discharge the dust.

Technical parameters:

Model

Voltage(V/Hz)

Power (KW)

Max vacuum(mmH2O)

Max air flow (m3/h)

Noise dB(A)

Air Inlet diameter (mm)

Filter area(m2)

Dust container capacity(L)

Dimensions(mm)

Mobility

V3JY

1 phase,220/50

3*1.0

2500

381

85±2

Ø 40

2

65

640*580*1446

Industrial castor

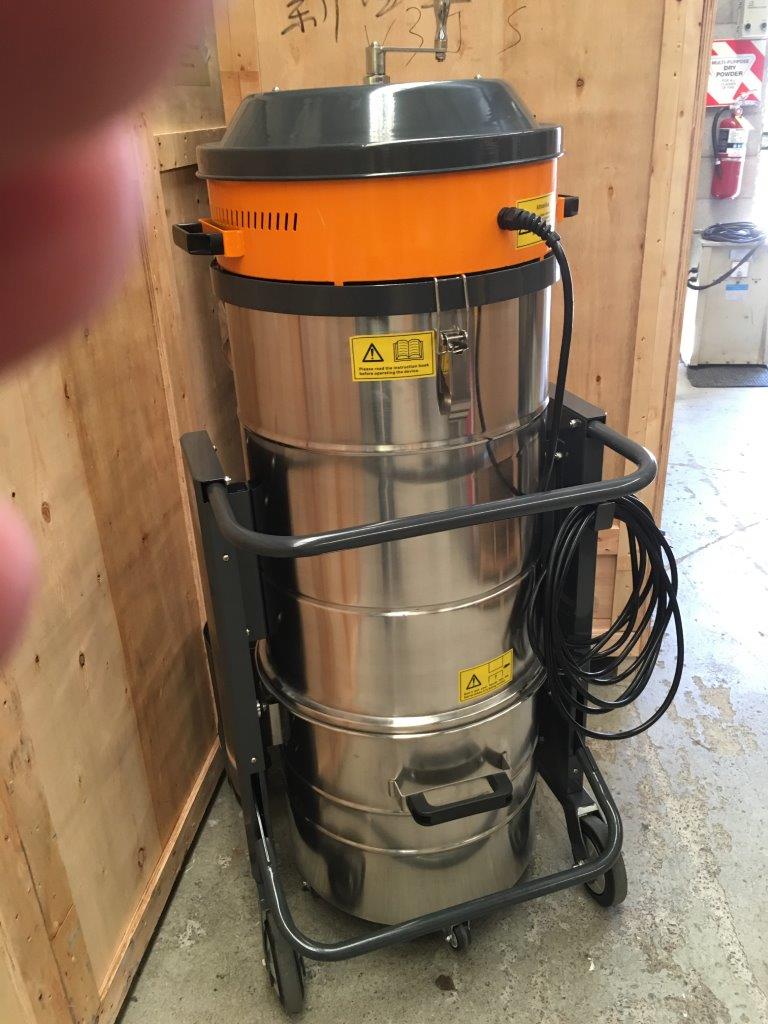

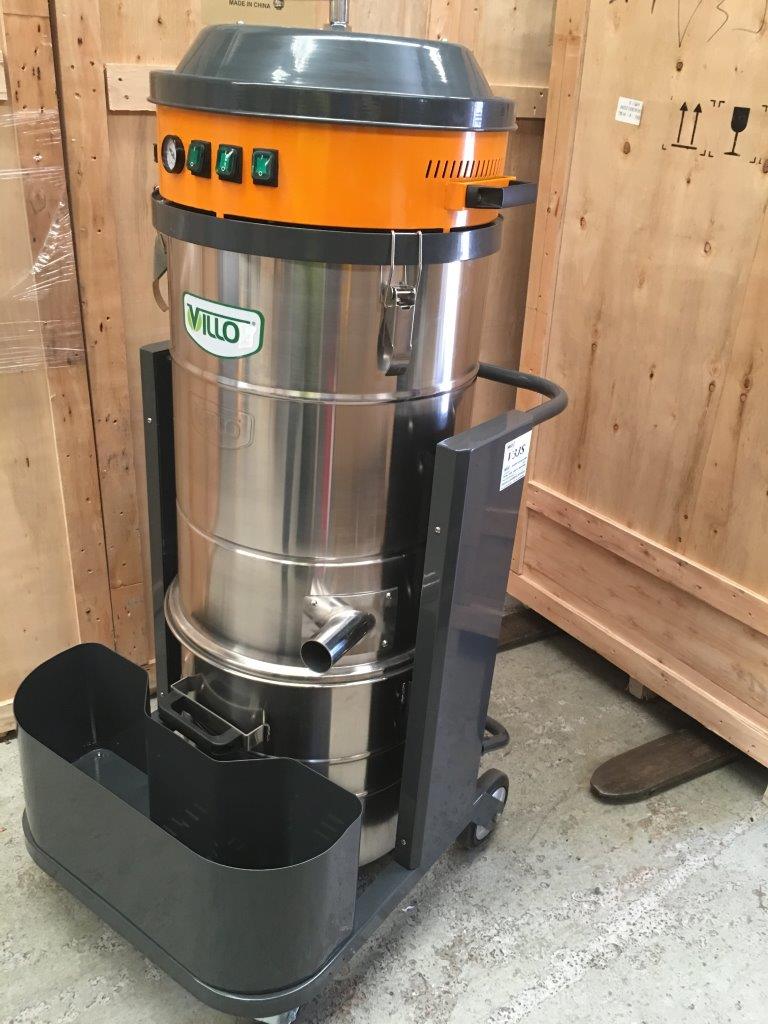

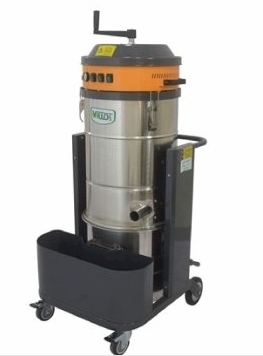

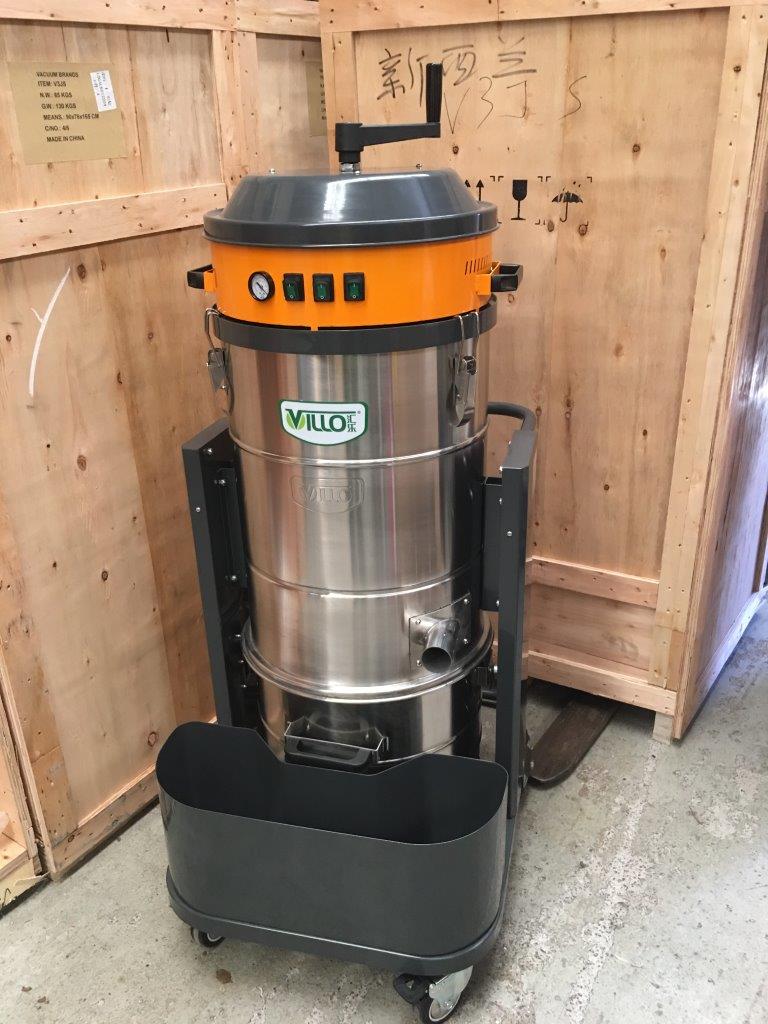

V3J – Single phase industrial vacuum cleaner

  1. Applicable to the work space where is relatively little, request move easily and need to change the air volume.

  2. Suitable for metal cutting, grinding, polishing, laser marking, powder filling, etc.

  3. Suitable for absorbing dust around food processing, chemical building materials, pipeline cleaning and other places

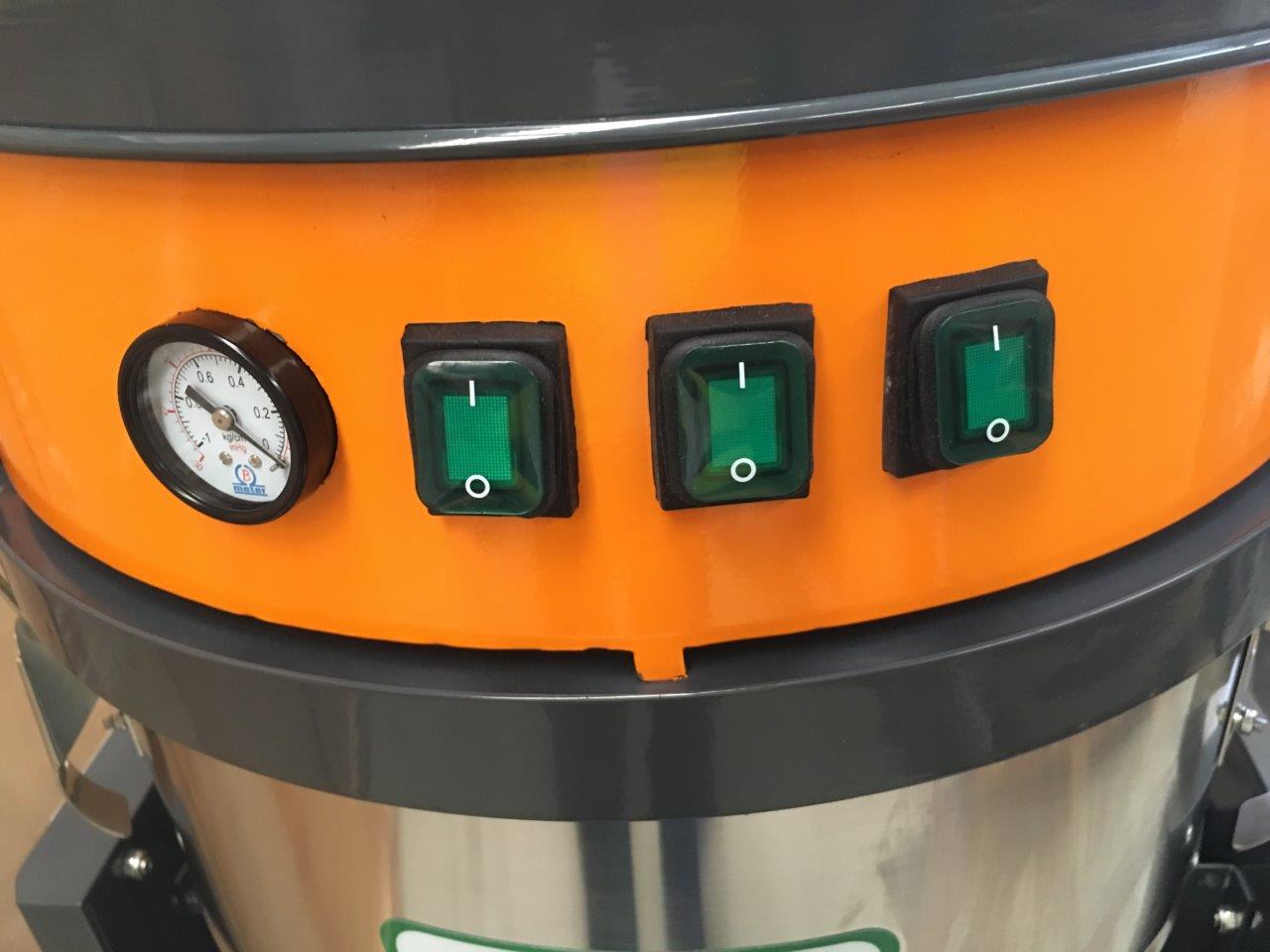

Independent control

Equipped with three independent single-phase aspiration motors, which are independently controlled and the air volume is variable.

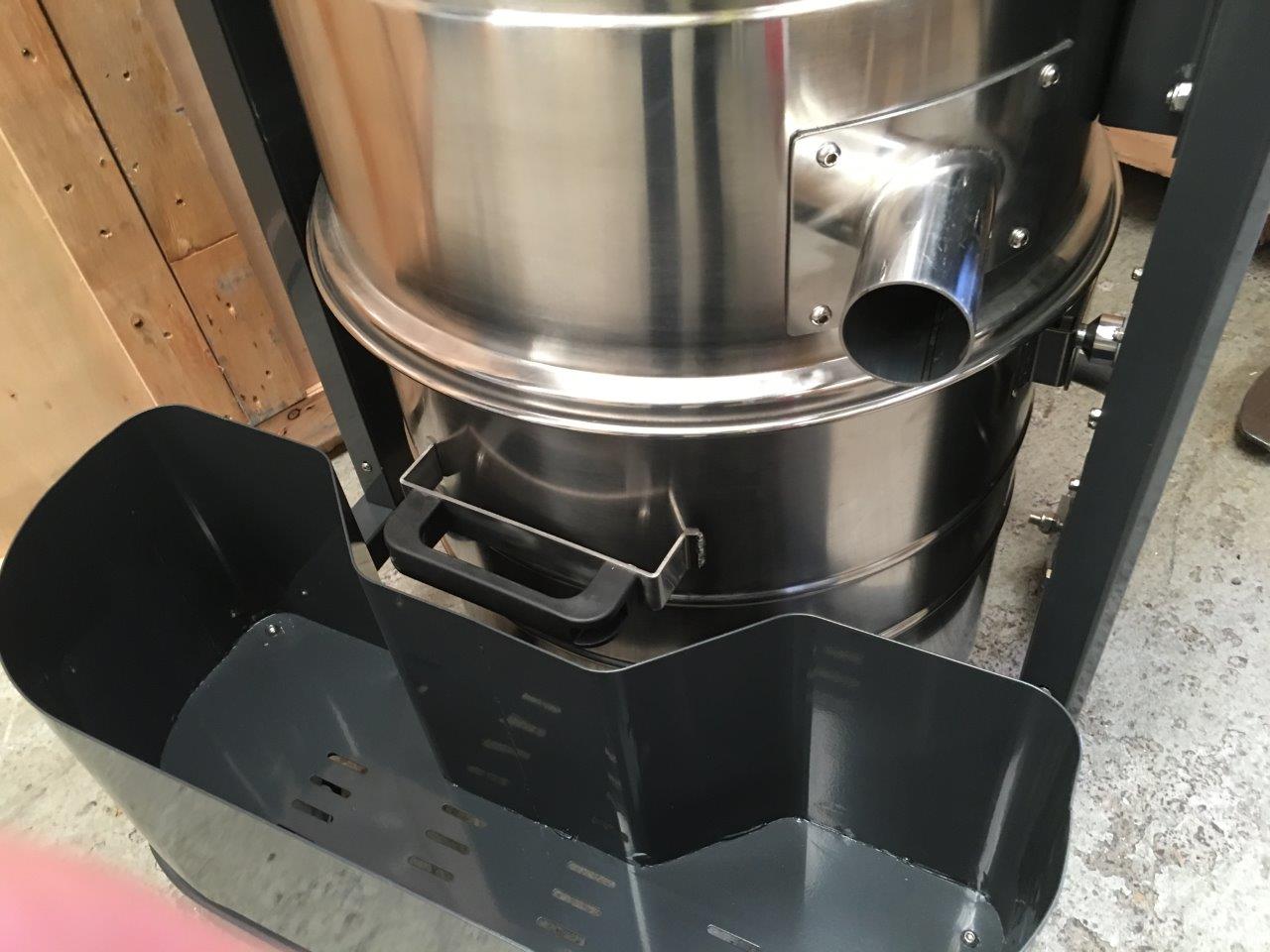

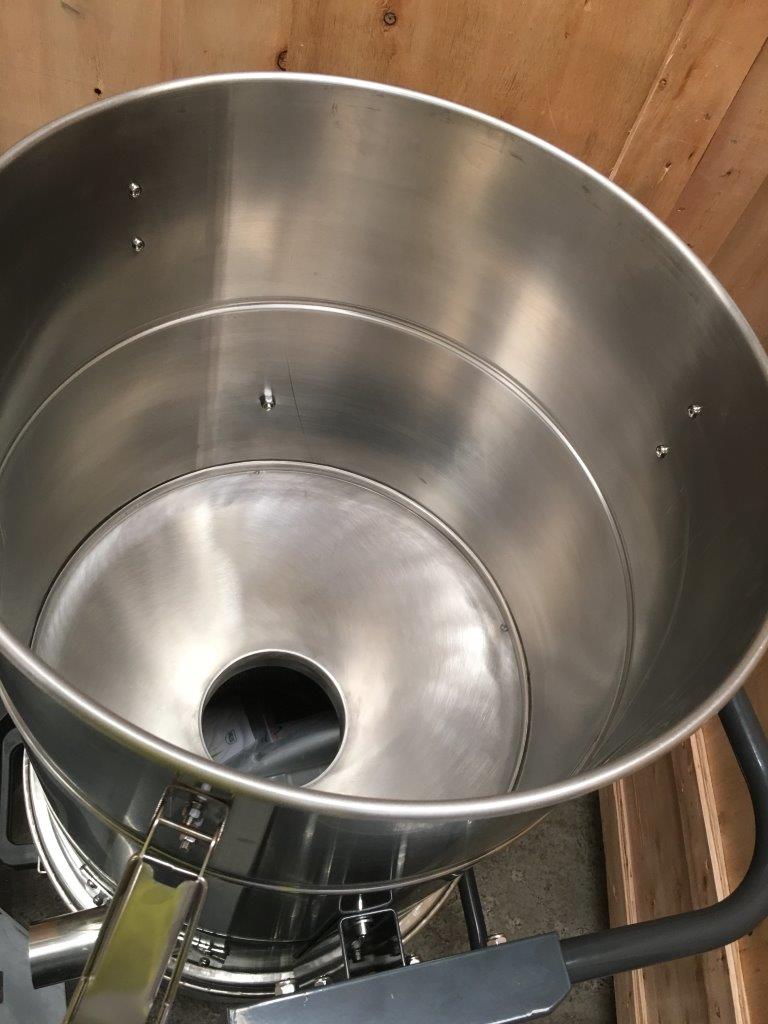

Durable

A quick and release system with 304 stainless dust collection barrel, which can free replacement within five years for non-artificial damages.

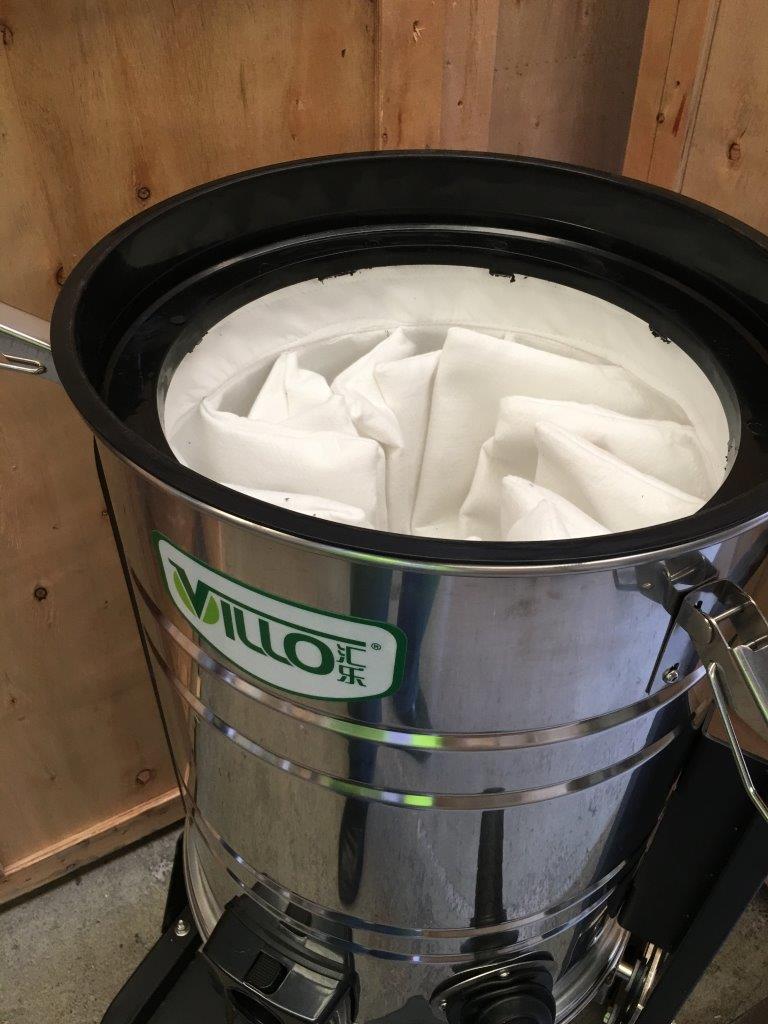

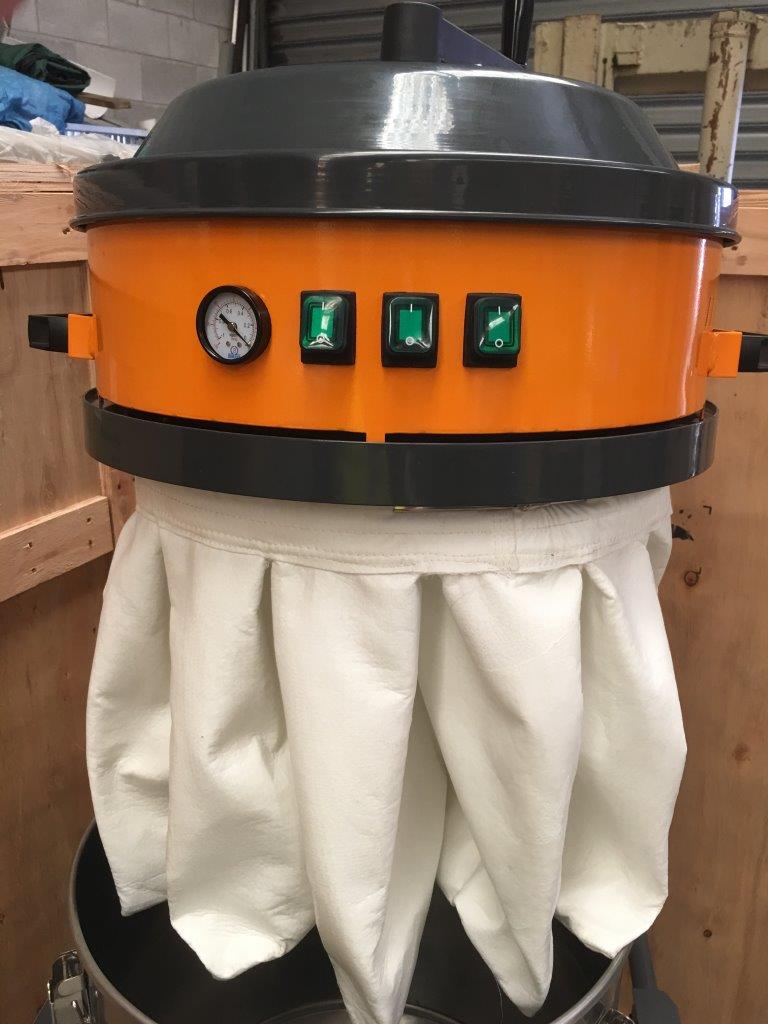

High filtering efficiency

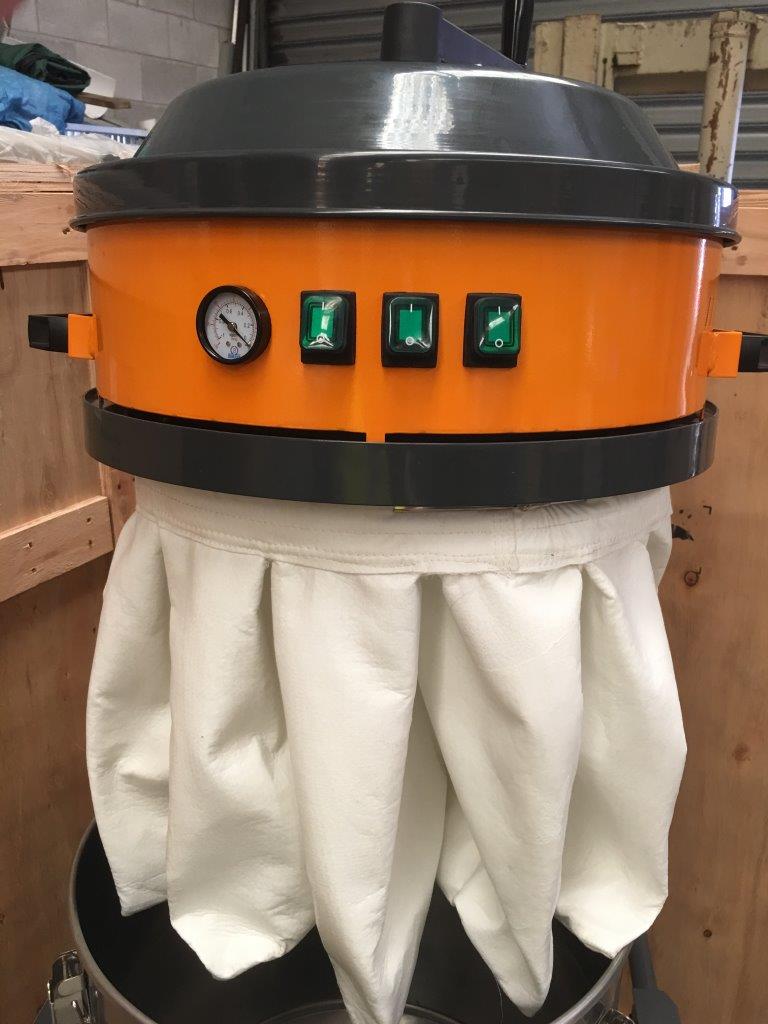

“Star” HEPA filter bag with large filtering surface and internal cyclone system, the filter has a high level of filtering efficiency (0.5-1.0 micron ) dust and filtration degree above 99%.

Real-time monitoring

The equipment equipped with vacuum pressure gauge can monitor the pressure, and remind the operator to clean/empty the unit.

Compact and flexible

Motor placed overhead, the system is compact, flexible and has movable brake wheel.

Technical parameters:



Model

Volt(V/Hz)

Power(KW)

Max air flow(m3/h)

Max vacuum(mmH20)

Filtration degree (㎡)

Filter material

Mode of cleaning

Suction inlet diameter(mm)

Dust container volume(L)

Noise dB(A)

Dimensions(mm)

Protective level

Weight(kg)

V3J

220/50

3*1.2

480

3000 (30kpa)

2.4

HEPA filter bag

Manual filter cleaning

Ø50

65

85±2

780*650*1460

IP54

76

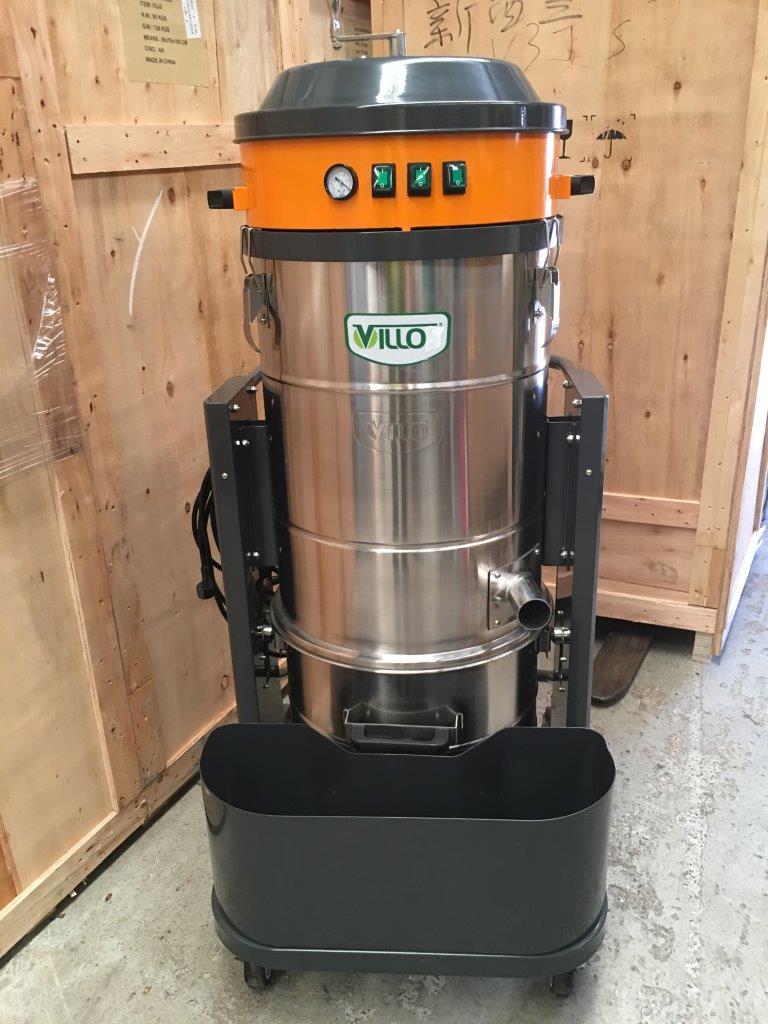

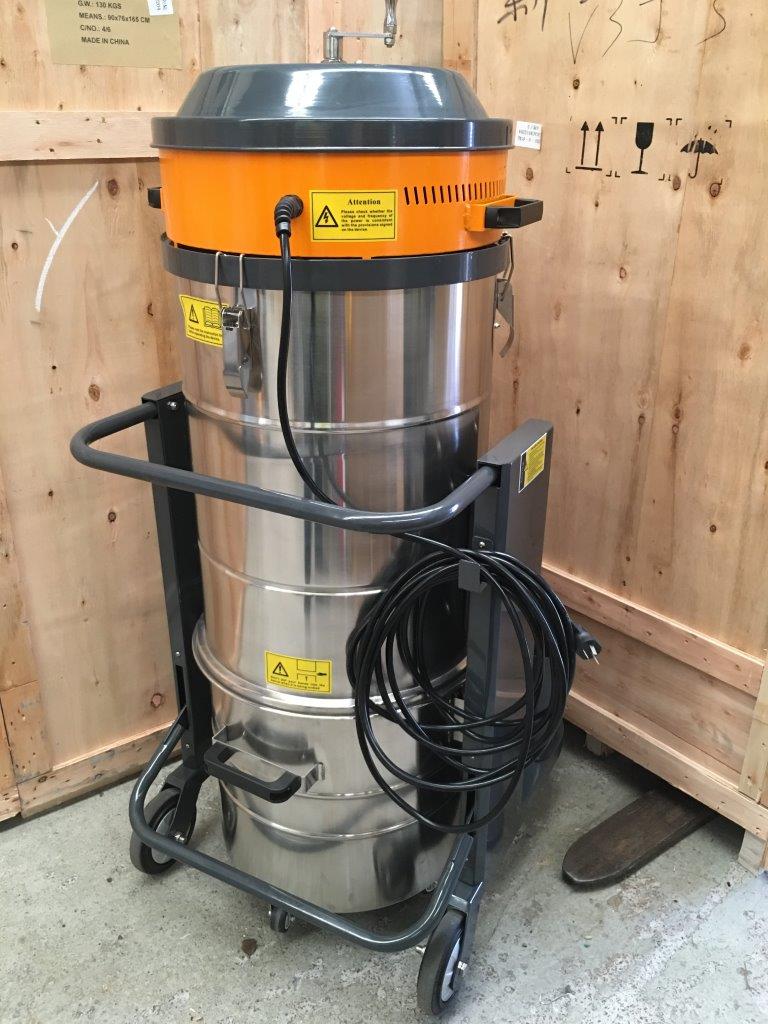

Single phase industrial vacuum cleaner V3JS

Application

1. Apply to the single-phase power supply.

2. Suitable for the working condition which requires mobility and adjustable air low.

3. Suitable for small quantity fine dust cleaning such as the cement, flour powder, etc.


Independent control

Equipped with three single-phase aspiration motors, which are independently controlled and the air volume is variable.

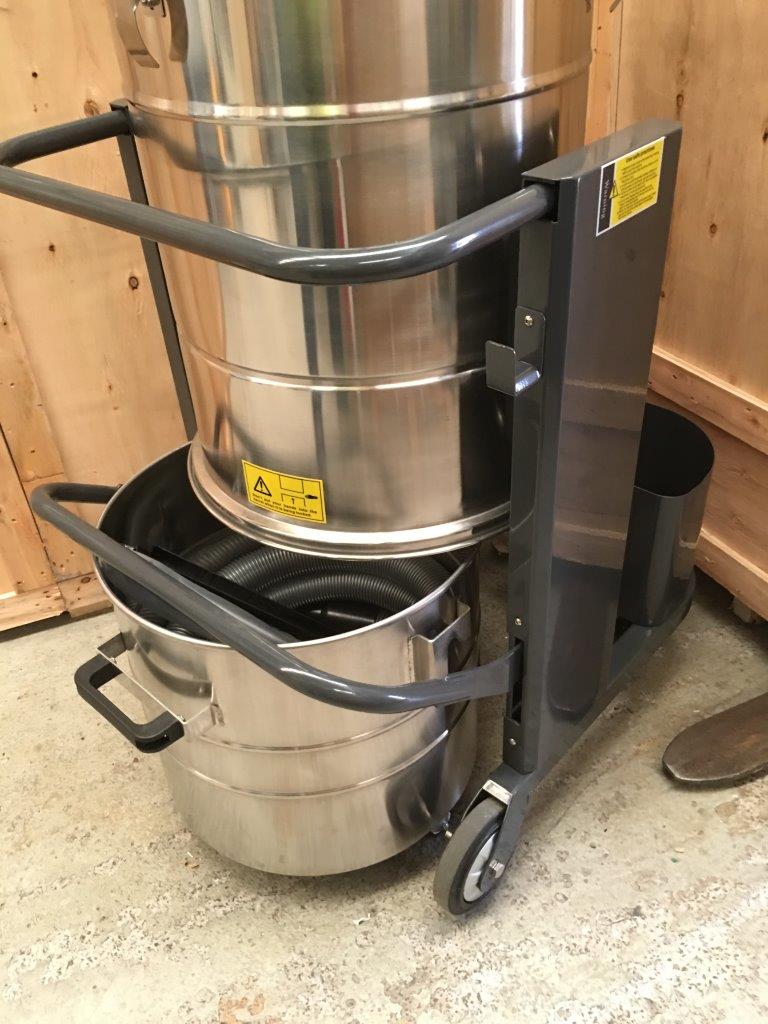

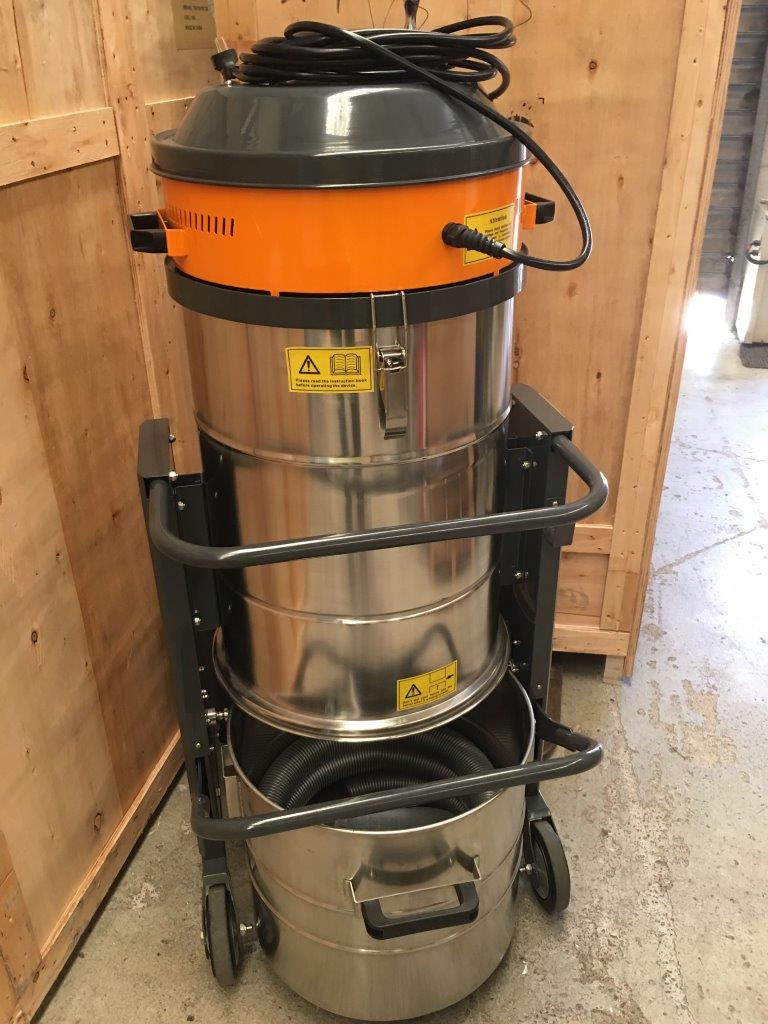

Dust discharging quickly

The dust collection barrel is made of 202 stainless steel materials and the dust can be discharged quickly and conveniently

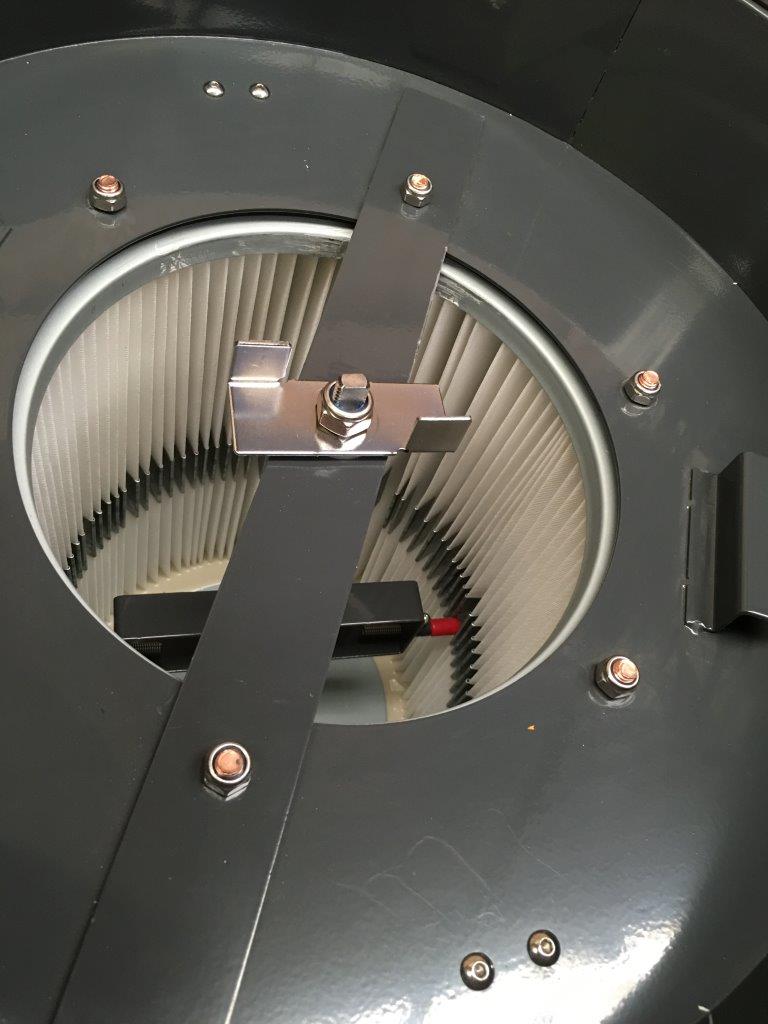

High filtering efficiency

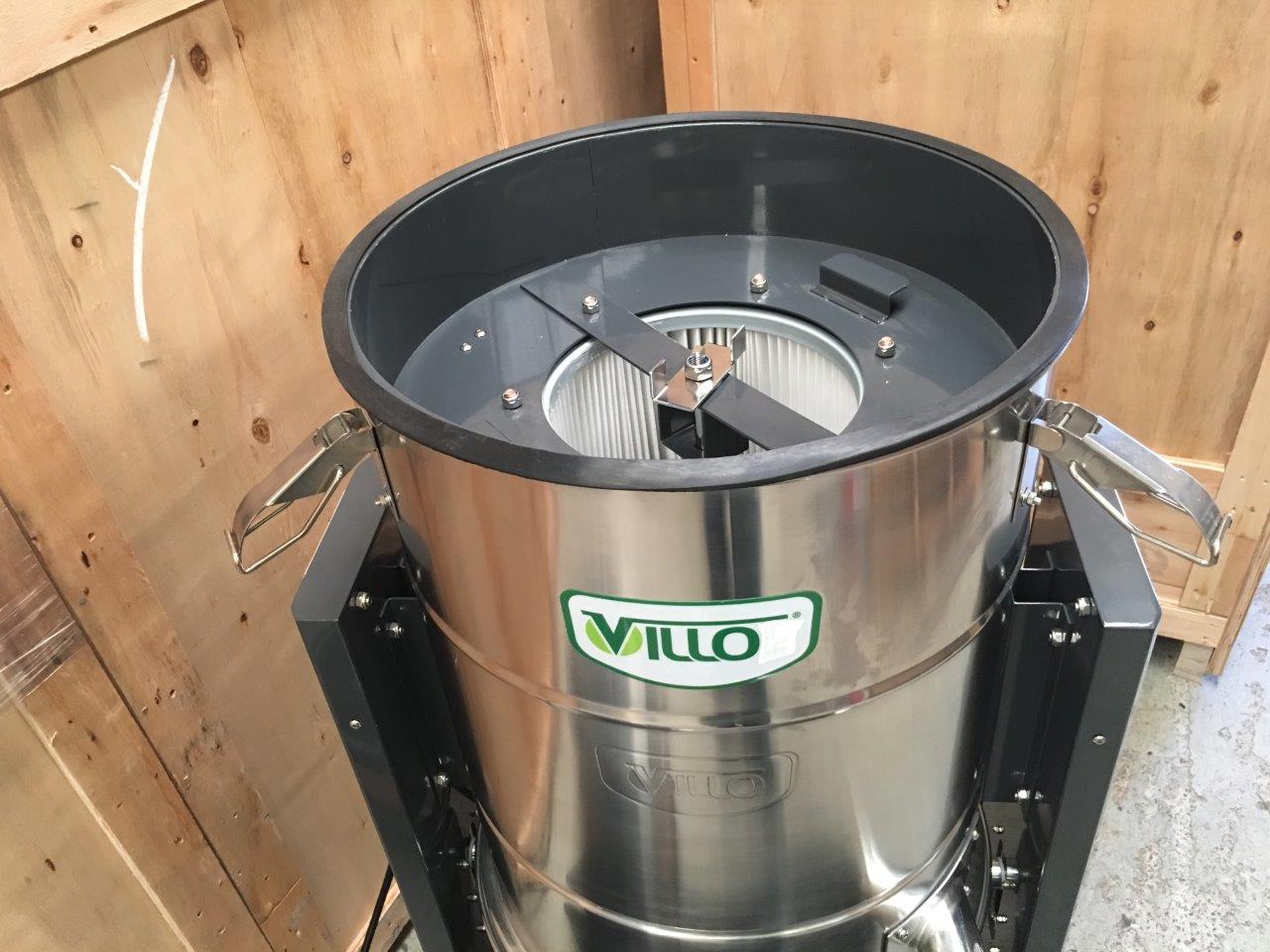

HEPA filter cartridge with large filtering surface and internal cyclone system, the filtering efficiency can be up to 99% at 0.3 micron dust after PTFE film coated.

Real-time monitoring

Equipped with vacuum pressure gauge which can monitor the pressure, and remind the operator to clean the filter inside.

Compact and flexible

Motor placed overhead, the system is compact, flexible and has movable brake wheel.


Technical parameters:



Model

Voltage(V/Hz)

Power(KW)

Max air flow(m3/h)

Max vacuum(mmH20)

Filter area(㎡)

Filter material

Mode of cleaning

Suction inlet diameter(mm)

Dust container volume(L)

Noise dB(A)

Dimensions(mm)

Protective level

Weight(kg)

V3JS

1 phase,220/50

3*1.2

480

3000 (30kpa)

3.5

HEPA filter cartridge

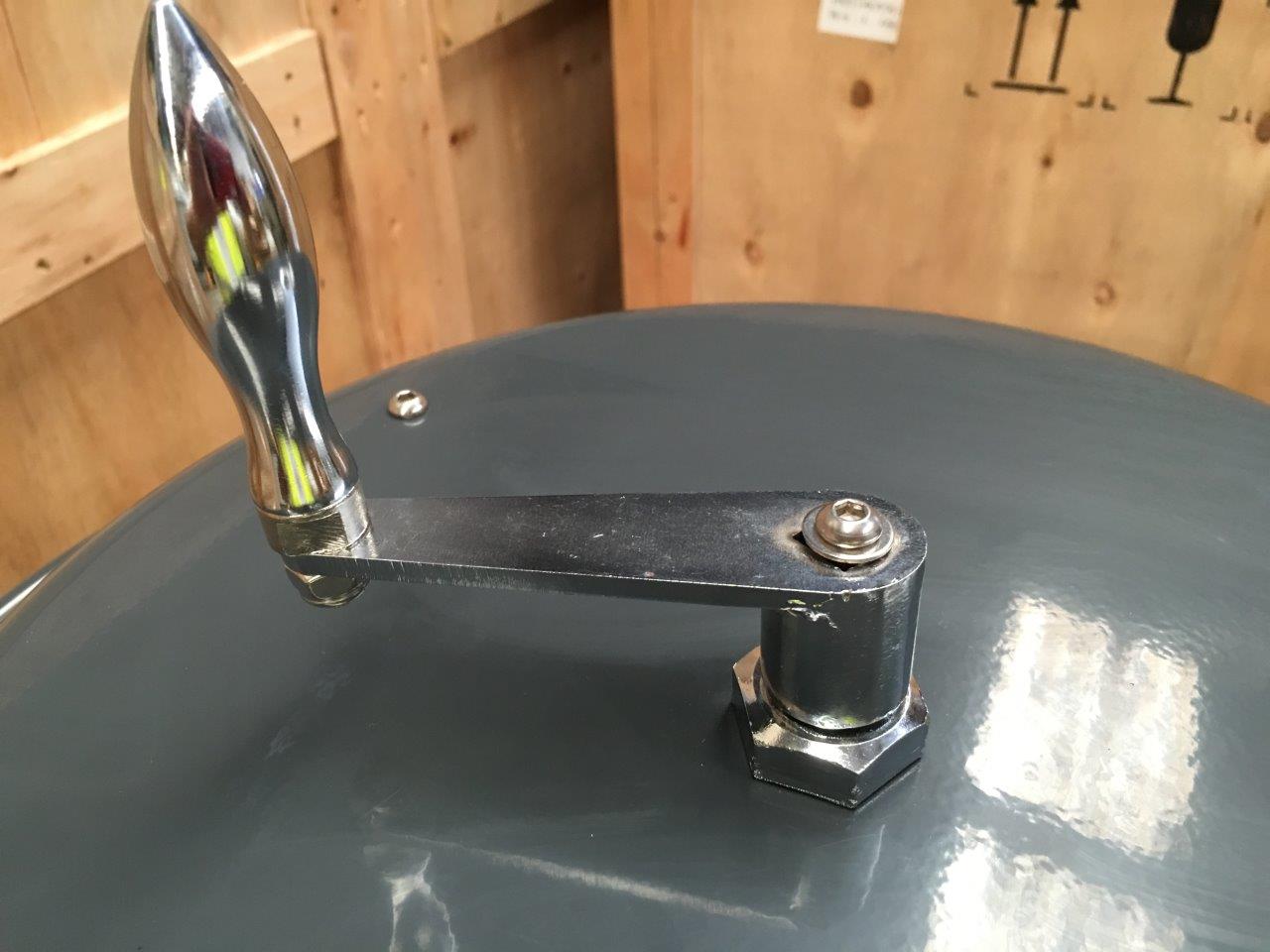

Manual filter cleaning by filter shaker handle

Ø50

65

85±2

780*650*1460

IP54

85
