For all woodworkers a good dust extraction system is essential. Dust can cause serious damage to health as well as reducing the effectiveness of your machine, or even causing damage to it.

The Dangers of Wood Waste

Some hardwoods and man-made materials are toxic and have been linked to serious health conditions. It is essential to take proper precautions when working with these materials and the extremely fine dust that they create. Suitable dust extraction will significantly reduce tiny particles in the air and make your workshop a much safer place to work in.

Record Power high filtration dust extractors have been independently tested down to 0.5 microns, offering the same level of protection as a P2 respirator or dust mask. They provide some of the best filtration available for machinery in this class.

It should be remembered that the high levels of filtration, which is offered by Record Power units, will only be relevant to the dust
that is captured by the extractor. If the design of the dust-producing machine does not allow for proper extraction, or seals and blast gates are not properly fitted, then some dust can still escape into the workshop.

Always check for good dust extraction capability, if purchasing machines that create dust.

High Pressure, Low Volume Extractors

Record Power high pressure, low volume systems (l-IPLV) are in many ways the most versatile type of extractor, and provide high pressure suction from vacuum motors. A HPLV system is generally suited to machines that produce fine dust particles, which tend to require low volume storage, such as bandsaws, sanding machines, and lathes. The main benefit of a HPLV system is they offer very fine filtration using a relatively small filter. Record Power use industrial-grade vacuum motors to deliver phenomenal high pressure suction, which increases when the hose diameter is reduced. This factor also makes the units an ideal partner for hand-operated power tools, such as belt sanders and routers. Record Power HPLV systems filter down to 0.5 microns, making them ideal for use with MDF.

Air Filters

Record Power ambient air filters are designed to remove airborne dust from the workshop. An impeller inside the machine creates airflow, which passes through a 2 stage fine filtration system. The filtered air is passed through the rear of the machine, and back into the workshop. They are designed to run quietly and efficiently for the entire duration of your time spent in the workshop. You can set the timer to run for an hour or two after you have finished to clean the air. Record Power air filters generally have low maintenance costs as the filters can be cleaned, so unless they become damaged it is highly unlikely they will need replacing.

Air
filters
High
filtration
vacuum
extractors
Suitable as primary extraction
Cleans ambient dust
Low maintenance costs
Quieter than most alternatives
Suitable for fine dust down to 1 micron
Suitable for fine dust down to 0.5 micron
Easily mobile
Lower cost, ideal entry level machines
More compact than most alternatives
Versatile
Can be used with bench and power
tools (using adapters)
Filters do not need regular cleaning
or replacement
Larger models available which are suitable
for powering full workshop system

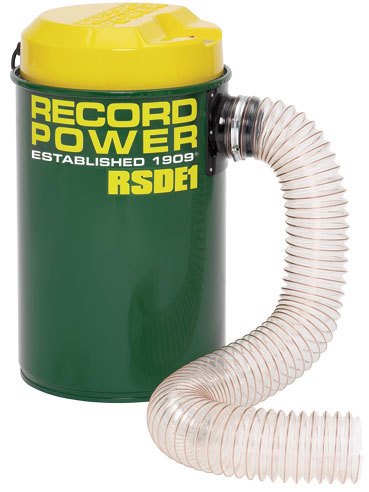

RSDE1 Fine Filter 45 Litre Extractor – HPLV_1

RSDE1 Fine Filter 45 Litre Extractor - HPLV_1Ideal if limited by budget or if a dedicated extractor is required for a single machine. If usage changes over time there are a wide range of accessories available to increase functionality.

The RSDE1 is a high filtration extractor designed to filter down to 0.5 microns to minimize the amount of harmful dust in the workshop. Particularly useful for fine dust producers such as saws or sanders. This is a compact but powerful machine ideal for workshops with limited space or budget.

Features:
Two Stage Filtration – Featuring a two stage filtration process for extra fine dust.

Specifications:
Filtration: 0.5 micron
Air Flow: 53 litres/second
Capacity: 45 litres
Motor: 1 kW
Weight: 11 kg
Size: H620 x W530 x D360 mm

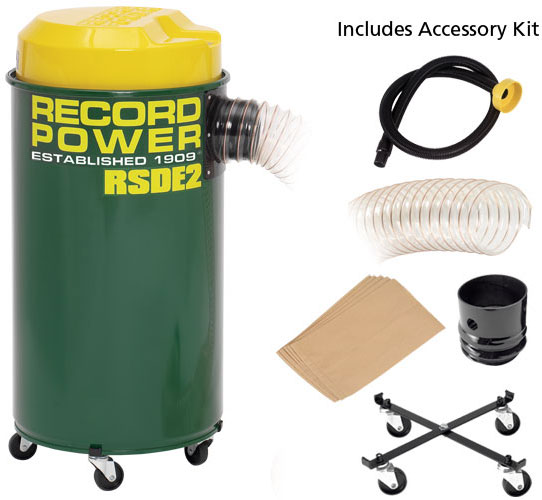

RSDE/2 Fine Filter 50 Litre Extractor with Accessories – HPLV

RSDE/2 Fine Filter 50 Litre Extractor with Accessories - HPLVThe RSDE2 is an excellent value general purpose workshop extractor. Compact and powerful, it is supplied with all the main accessories to use with both machines and power tools. Wheel kit is included.

This is a single motor drum machine with a large 50 litre capacity. It is supplied complete with a castor wheel set, a 100-32mm reducer with 2m of 32mm hose, 2m of 100mm hose, 5 spare paper filters and an easy fit cuff.

Features:
Two Stage Filtration – Featuring a two stage filtration process for extra fine dust.

Specifications:
Filtration: 0.5 micron
Air Flow: 53 litres / second
Capacity: 50 litres
Motor: 1 kW
Weight: 13.5 kg
Size: H770 x W530 x D360 mm

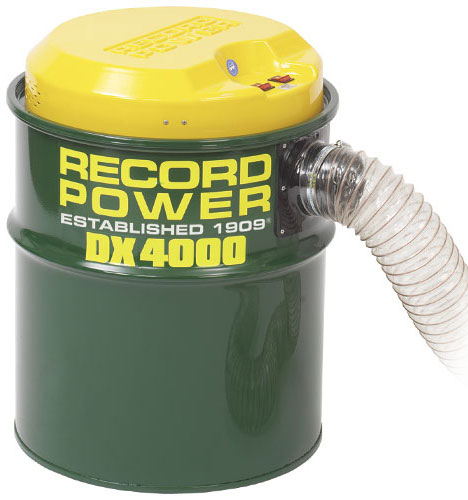

DX4000 Fine Filter Twin Motor 80 Litre Extractor – HPLV

DX4000 Fine Filter Twin Motor 80 Litre Extractor - HPLVThis powerful high filtration extractor has twin motors, a generous 80 litre capacity and is designed to filter down below 0.5 microns giving excellent protection. With an impressive suction capacity of 106 litres per second and the 100mm inlet and hose, it will make a perfect partner for many machines and is versatile in use. Capable of running a system of several machines and with long hose runs (if airtight). With the RSDE-A accessory kit, it can be used with hand held power tools.

Features:
Triple Filtration – Featuring a three stage filtration process with an extra pre-filter to protect main filters.

Specification:
Filtration: 0.5 micron
Air Flow: 106 litres / second
Capacity: 80 litres
Motor: 2 x 1 kW
Weight: 20 kg
Size: H630 x W660 x D490 mm

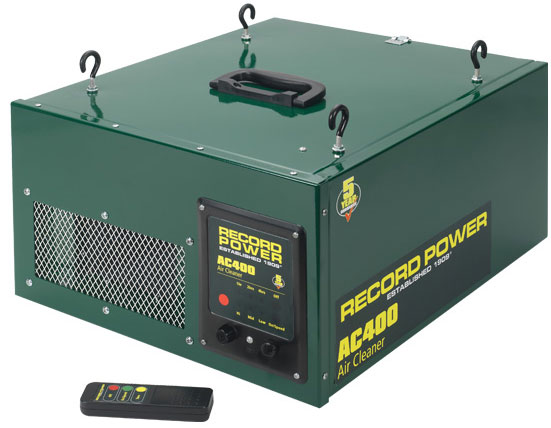

AC400 Two Stage Air Filter with Remote 3 Speeds and Time Delay

AC400 Two Stage Air Filter with Remote 3 Speeds and Time DelayThis new air filter offers great features and performance at a very competitive price. It features two stage filtration with pocket filters (previously only available on our top of the range AC2 machine and nearly twice the price) to provide filtration down to 1 micron. It has 3 speeds and a timer function so you can leave the unit to run for a period after you have finished in the workshop. Both of which can be applied by remote control, which is included with the machine. Also supplied with mounting hooks and chains.

Useful for reducing nuisance dust, particularly in small workshops. This unit provides simple single stage filtration for areas up to 113m3.

Features:
Remote Control – Remotely controlled programmable timer with three speeds.

Specification:
Filtration Rate: 409 CFM/Min
Motor: 1/8 hp
Filtration: 1 Micron
Noise Level: 69 dB
Weight: 14 kg
Size: H258 x W431 x D514 mm

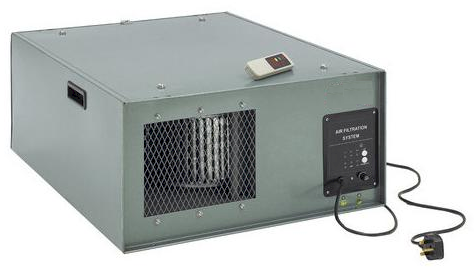

SP-12 Air Filtration Units

SP-12 Air Filtration Unit

Description
Can remove most airborne contaminants and maintain fresh air circulation
Features.
  • 1044cfm capacity
  • Remote control ON/OFF
  • Three motor speed settings
  • Three time settings (1Hr, 2Hr , 4Hr)
  • Easy removal to clean filter element
  • Designed for ceiling mount
  • Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size

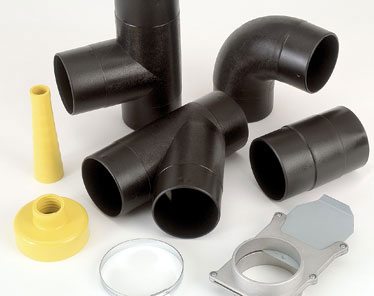

Dust Extraction Accessories

Dust Extraction AccessoriesThese accessories are compatible with Record Power dust extractors as well as many other brands that feature 100mm inlets.

Consumables and filters are designed specifically for the Record Power dust extraction machine range and may be unsuitable for other brands.

 Accessories

RSDE/A Accessory Kit for Fine Filter HPLV Extractors

RSDE/A Accessory Kit for Fine Filter HPLV Extractors

This kit enables your extractor to be used with power tools and machines with up to 32mm extraction outlets.

Includes:
X1500B 100 – 32 mm Reducer with 2 Metres of 32 mm Diameter Hose
DX1500C Stepped Power Tool Adaptor
DX1500E 5 Pack of Filter Bags

DX1500C Stepped Power Tool Adaptor for 32mm Hose

DX1500C Stepped Power Tool Adaptor for 32mm Hose

This adaptor is stepped, allowing it to be easily cut down to fit a wide range of power tools and bench top machines.

DX100X 100mm Easy Fit Hose Cuff for Dust Extractors

DX100X 100mm Easy Fit Hose Cuff for Dust Extractors

Connecting an extractor to a machine is no longer a struggle with this easy fit cuff on the end of the hose. It glides effortlessly onto any 100mm outlet.

Consumables

DX1500E 5 Pack Filter Bags for High Filtration Dust Extractors

DX1500E 5 Pack Filter Bags for High Filtration Dust Extractors

Replacement paper filter bags for use with Record Power high filtration extractors.

DX1500F Filter Cartridge for High Filtration Dust Extractors

DX1500F Filter Cartridge for High Filtration Dust Extractors

Replacement for the main filter on Record Power high filtration dust extractors.

Feel free to telephone us for additional information. We are happy to advise on the right vacuum cleaner for your needs.

Carbatec Room Air Filters

We offer a wide range of dust extraction and control equipment. One of the most popular products is our Room Air Filter range, consisting of a 1/6 HP and 1/3 HP machines.

Suitable for hanging from your ceiling, mounting on a wall, on a stand or bench. Our AF-1000C 1/6hp room air filter features remote control and variable extraction capacities of 450, 550 and 650cfm.

Our AF-2000C 1/3hp room air filter features remote control and variable extraction capacities of 800, 1200 and 1700cfm.

Adding more air filters to either machine increases your air filtration capacity.

Call 09 520 1115 to find out more.

Contact us for more information about any of our brands or vacuum cleaners.

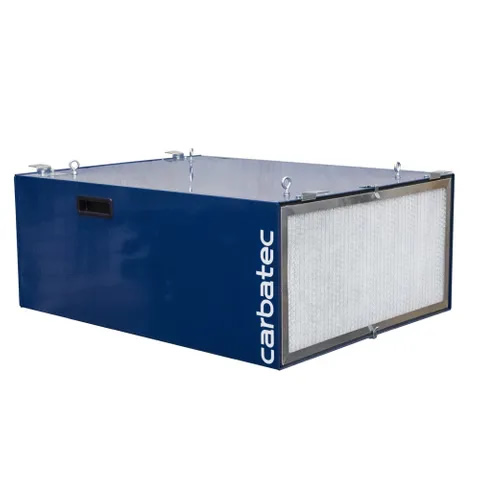

Carbatec AF1000C

New look, new code, same great machine! We have updated the look and product code of our CTF-1000 (now AF-1000C), however, be assured, all specifications of this machine are the same as our beloved CTF-1000.

This machine further enhances the safety of your workshop, by drawing air into the machine and filtering the dust then returning filtered air back into the room or shed. They can be left running quietly in the background, filtering out even the finest dust particles.

To maximise your filtration capability, you can use an optional third stage charcoal odour filter that is sold separately.

Features & Benefits:

  • Bench mounted or hang from the ceiling, out of the way
  • Effectively filters 98% of 5 micron (and 85% of 1 micron) particles
  • 1/6 HP, 240V motor
  • 3 speed motor – 450, 550 and 650 CFM (cubic feet per minute)
  • 3 pre-set run times – 2hr, 4hr and 8hr
  • Remote for convenience for On/Off and motor speed changes

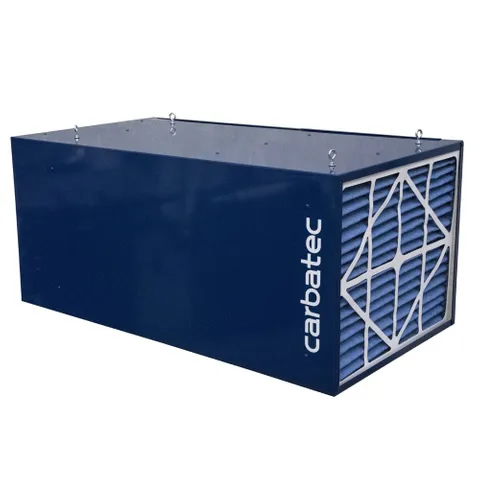

Carbatec AF2000C

New look, new code, same great machine! We have updated the look and product code of our CTF-2000 (now AF-2000C), however, be assured, all specifications of this machine are the same as our beloved CTF-2000.

This machine further enhances the safety of your workshop, by drawing air into the machine and filtering the dust then returning filtered air back into the room or shed. They can be left running quietly in the background, filtering out even the finest dust particles.

The standard AF-2000C filters >99% of particles 5 microns or larger and 85% of particles down to 1 micron and features pre-set run times of 2,4 or 8 hours. This unit is also fitted with a diffuser on the exhaust side that provides a more even spread of clean air.

To maximise your filtration capability, you can use an optional third stage charcoal odour filter that is sold separately.

Features & Benefits:

  • Bench mounted or hang from the ceiling, out of the way
  • Effectively filters 98% of 5 micron (and 85% of 1 micron) particles
  • 250W 1/3 HP, 230V motor
  • 3 speed motor – 800, 1200 and 1700 CFM (cubic feet per minute)
  • 3 pre-set run times – 2hr, 4hr and 8hr
  • Remote for convenience for On/Off and motor speed changes
